Delta 13 14 Series Tub Spout Installation

Slowly turn on the water supplies to purge the system for 30 seconds. Prepare the area for water spray.

Delta Tub Spout Installation Questions Terry Love Plumbing Advice Remodel Diy Professional Forum

Copper male adapter keeping your overall length to 1-14.

Delta 13 14 series tub spout installation. Do not use PEX tubing for tub spout drop. Thank you for your question. You will need at a minimum 1-12.

Single handle kitchen faucet 11 pages. Thread showerhead 4 onto shower arm. To prevent damage to ﬁnish on shower arm insert wall end of shower arm into shower ﬂange 3 before screwing arm into riser connection.

The top port on the MultiChoice Universal R10000 Rough In Valve Body can be capped for tub-only installation. Twist and pull sleeve to remove it. Do not use PEX tubing for the spout drop.

Handles over valve stem and secure with set screw. Connect top outlet 1 to shower arm 2 with proper fittings. Slide sure tabs 2 are firmly pressed down into slots 3.

While we do not currently offer the Lakewood as a shower-only kit we do offer shower trim kits with a similar style such as the Dryden model T14251-RB or Ashlyn model T14264-RB. Thread showerhead 4 onto shower arm. Connect top outlet 1 to shower arm 2 with proper fittings.

Installation 2 Showerhead and Tub Spout Installation A. Remove temperature knob cover and handle. Thread showerhead 4 onto shower arm.

Tub spout installpdf Author. The installation manual for the valve rough can be found at. Plumbing Product Delta MultiChoice 1314 Series Installation Instructions And Owners Manual.

To prevent damage to finish on shower arm insert wall end of shower arm into shower flange 3 before screwing arm into riser connection. Pipe or copper 90 degree elbow to the tub spout nipple. Place a towel over the spout and continue tightening with adjustable pliers so that the spout is tight to the wall and the opening faces downward into the tub.

There are two types of valves. Installation 2 Showerhead and Tub Spout Installation A. After flushing install the.

To pre-vent damage to finish on shower arm insert wall end of shower arm into shower flange 3 before screwing arm into riser connection. Delta manufactures spouts for almost any type of installation. Choose a or b below depending on your series 13001400 Series.

Make Place spout base 1 over spout anchor and onto basin surface. Delta also has an attachment that will allow a spout to thread onto either a short or long pipe depending upon your bathroom plumbing setup. Copper or iron pipe must be used with only one elbow to the tub spout nipple.

At the minimum and then threading the tub spout. Units made before this date can be upgraded but only with a trim of the corresponding series. Valve trim 94 pages Plumbing Product Delta 136-DST Series Manual.

Soak cartridge in a 5050 vinegar and water solution for 24 hours to remove any mineral deposits. Ive always seen instructions and dimensions with the spouts. 13 14 Series Installation 3 Showerhead and Tub Spout Installation FOR SHOWERHEAD INSTALLATION.

13001400 Series trims can be replaced with 1314 Series trim kits using the original RP19804 cartridge and 1700 Series trims can be replaced with 17 Series trim kits using the RP32104 cartridge. It looks like the back of the adapter is 14 to 1 from the back to the finished wall. Thread showerhead 4 onto shower arm.

At the maximum 12. Unscrew brass bonnet nut. The only other option is if you can solder on a 12.

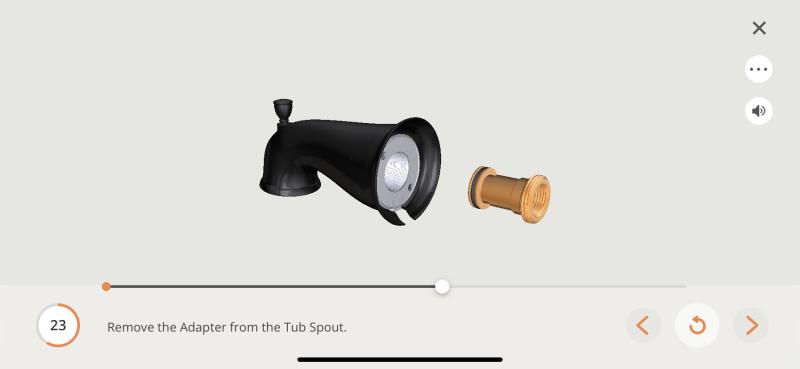

Place the new Delta tub spout on the pipe threads and turn clockwise to attach. The Delta Monitor T14476-BL Tub and Shower Trim Kit can be installed without having to use the shower head. This attachment will thread into your spout if necessary to accommodate rear-mounting situations.

Connect top outlet 1 to shower arm 2 with proper fittings. Tubo de Salida para Bañera Sin Desviador. To prevent damage to finish on shower arm insert wall end of shower arm into shower flange 3 before screwing arm into riser connection.

Make sure tabs 2 are firmly pressed down into anchor slots 3. Delta Faucet RP5834 12 CHROME TUB SPOUT. To flush the system of debris remove the cover and bonnet nut.

Installing a Delta tub spout is a straightforward process as is the case with most tub spouts. Of copper to solder on the adapter. Yes this can be installed in a shower-only installation without the tub spout.

13 14 Series Installation 2 Showerhead and Tub Spout Installation FOR SHOWERHEAD INSTALLATION. Connect top outlet 1 to shower arm 2 with proper ﬁttings. A minimum of 12.
